BSF-6540XLT semiautomatic sleeve sealing machine can be fed manually or pneumatically. When the sealing & cutting cycle is complete, the product is discharged into the shrink tunnel automatically.
A shrink packaging machine, also known as a shrink wrap machine, is a common equipment in the modern packaging industry that uses shrink film to wrap products. The process involves enclosing a product or a group of products in a plastic film, typically made of PVC, PE, POF. The film is then heated, either through a heat tunnel or a heat gun, which causes it to shrink tightly around the product, creating a secure and protective packaging. Commonly used in industries such as food and beverage, cosmetics, pharmaceutical and retail. It has the advantages of beautiful appearance, dustproof and moistureproof.
How to Choose the Right Heat Shrink Machine According to Your Needs
1. Are you in search of the best heat shrinkable sealing machine?
Heat shrinkable sealing machines are indispensable for achieving efficient and high-quality packaging. However, with a plethora of models and options available, making the right choice can seem overwhelming. This guide aims to simplify this process for you.
2. Do you know the popular heat shrinkable sealing machine models on the market?
The L-shaped sealing and cutting machine and the side sealing machine are among the most sought-after models.

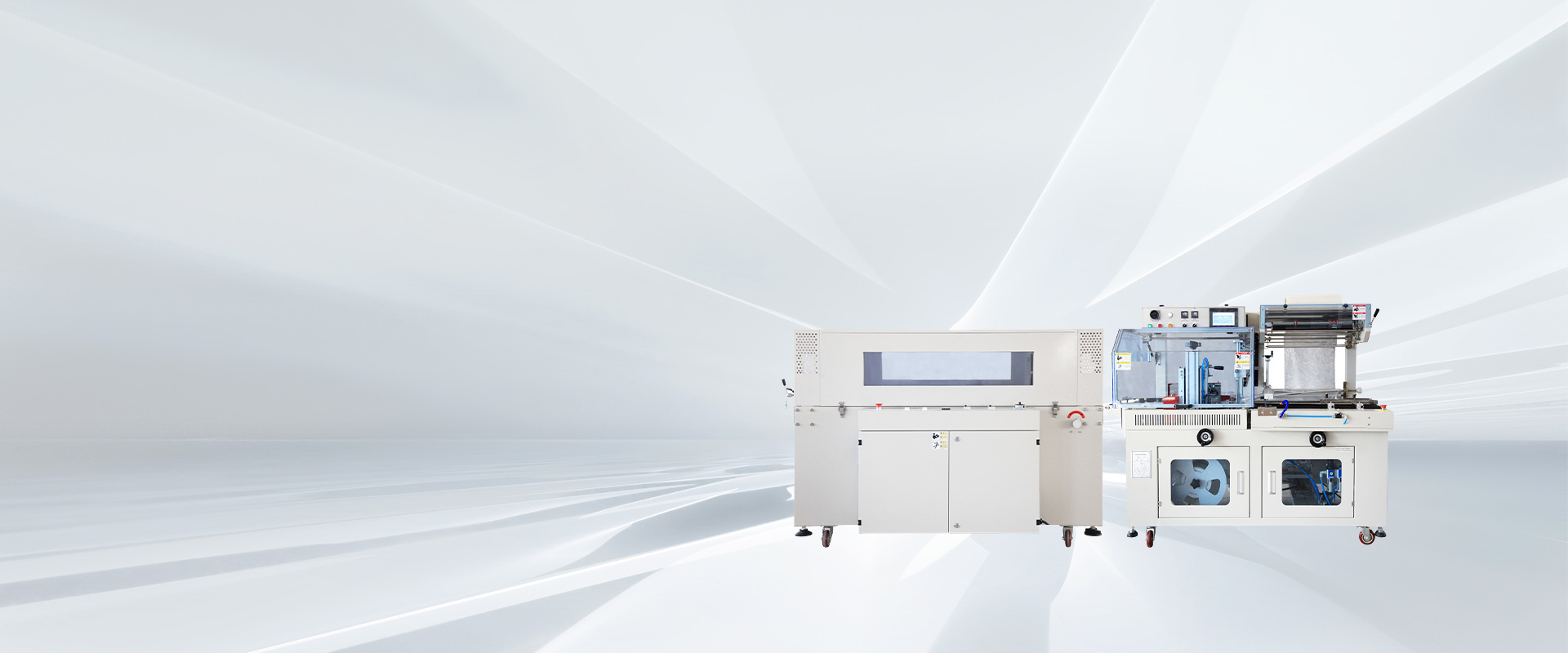

1) The L-shaped sealing and cutting machine is ideal for products with small packages and regular shapes. It operates by creating a sealed pouch around the product, providing excellent protection and aesthetics. The L-shaped design allows for easy loading and sealing of the products. This machine is commonly used in industries such as food, cosmetics, and pharmaceuticals. Hualian offers a range of L-shaped sealing and cutting machines that cater to different production capacities and requirements.
Do you know the popular heat shrinkable sealing machine models on the market?
2) The side sealing machine is suitable for products with larger packages and irregular shapes. It uses a continuous side seal to enclose the product securely. This machine offers versatility and flexibility, allowing for packaging of various sizes and shapes. The side sealing machine is commonly used in industries such as electronics, automotive, and household goods. Hualian provides a range of side sealing machines with advanced features and customizable options.
Do you know the popular heat shrinkable sealing machine models on the market?
Both machines provide reliable sealing quality, but the L-shaped sealing and cutting machine offers higher sealing quality due to its design. This makes it a preferred choice for products that require high-quality.
3. But how do you decide which heat shrinkable sealing machine is the best for you?
This decision should be based on several factors including the type of product you're packaging, the desired production speed, the quality of sealing required, your budget, and the space constraints of your work area.
Among the various heat shrinkable sealing machine manufacturers, Hualian is a reputable manufacturer that offers a wide range of heat shrink packaging machines to meet various needs and requirements. Their equipment provides reliable performance, advanced features, and customizable options.
Before you make your purchase, consider checking out heat shrinkable sealing machine reviews and comparisons. This will give you a better understanding of the machine's performance and value for money.
So take your time, consider all the factors, and make an informed decision. Happy shopping!
4. What others say ?
Q: We are going to buy a heat shrink machine for our own use, can you recommend the machine? A: L-typed by manual BSL-5045L, BSF-5030LT,BSL-501,BSF-501
Q: We are a factory with a daily output of 5000pcs, now we want to improve to 18000pcs, which machine would you recommend? (Depend on 8h/day working time) A:

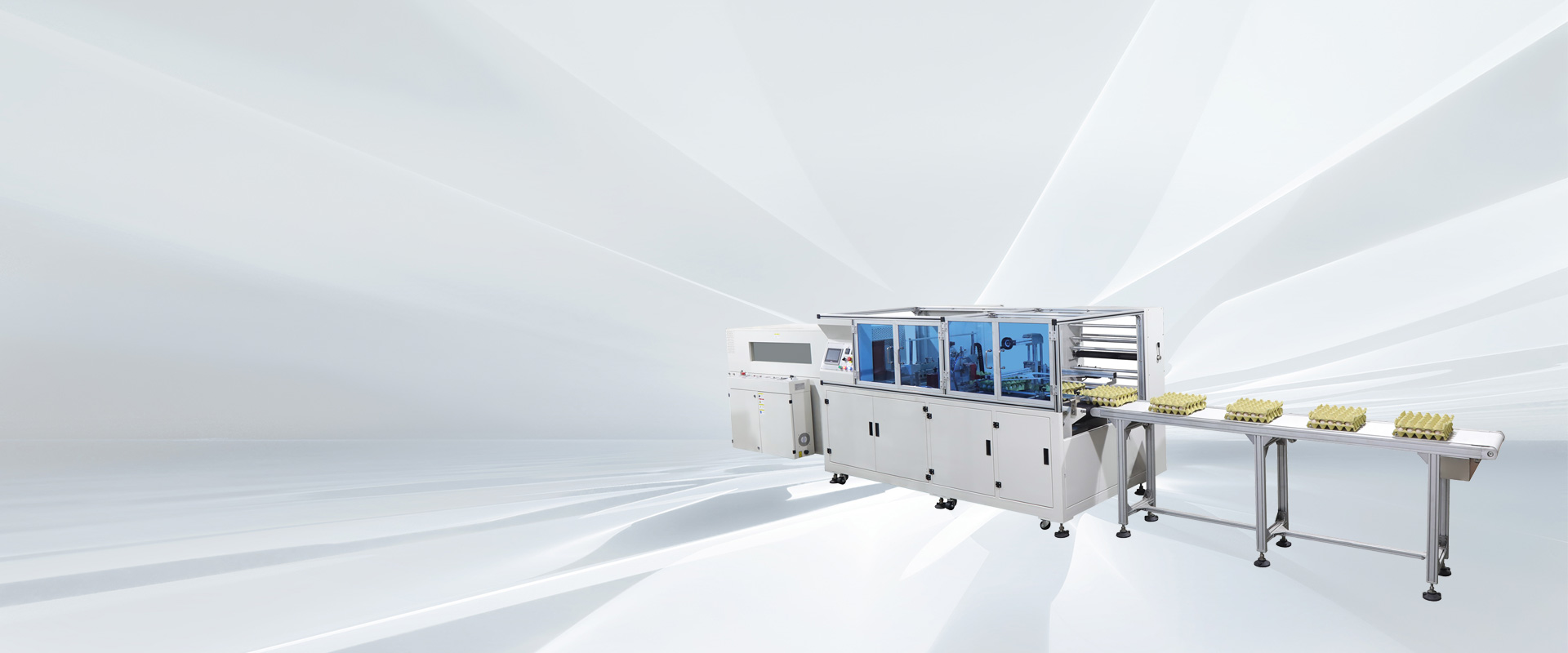

1.Recommend you the model BSF-5545LE+BS-5030X, packing speed is 30-40pcs/min. 2.If you want more faster, we have the these models:BSF-5545LD+BS-5030X40-60pcs/min; HWS-50C 60-100pcs/min, can be customized according to your needs.
Q: We are local distributors, want to know about the hot shrinking machines sold in the local area recently. A: The most popular products purchased are these 3 series. 1.The L-shaped sealing and cutting machine：BSF-5640LG+BS-5030X, BSF-5640LG-E,BS-4522 2.The side sealing machine：BSF-5545LD+BS-5030X 3.The Sleeve Sealers：BSF-6540XLT, BSF-6030XIII+BS-6040L
5. What packing material is required ?
Heat shrinkable films are mainly made of polyethylene (PE), polypropylene (PVC), polyolefin (POF) and other materials, and heat shrinkable films of different materials have different performance characteristics.
PE: PE (polyethylene) film is a common heat-shrinkable film with good flexibility and abrasion resistance. It is suitable for the packaging of large products and heavy products, such as bottled water, beverages, etc. POF: POF (polyolefin) film is an environmentally friendly heat-shrinkable film with excellent transparency, shrinkage properties and seal strength. It is suitable for the packaging of various products, such as food, medicine, electronic products, etc. PVC: PVC (polyvinyl chloride) film is an economical heat-shrinkable film with good shrinkage properties and low cost. It is suitable for the packaging of disposable products and low-value products, such as stationery, toys, etc.
6. How to choose the thickness of heat shrinkable film?
For light products, such as food, cosmetics, toys, etc., you can choose a thinner heat shrinkable film, such as 12-19 microns For medium and heavy products, such as mineral water, beverages, books, etc., you can choose a medium-thick heat shrinkable film, such as 20-30 microns For heavy products, such as home appliances, hardware, etc., thicker heat shrinkable films can be selected, such as 31-100 microns.
7. Heat shrink temperature
The shrinkage temperature of PE:110-130 degrees The shrinkage temperature of POF:140-160 degrees The shrinkage temperature of PVC: 100-120 degrees
