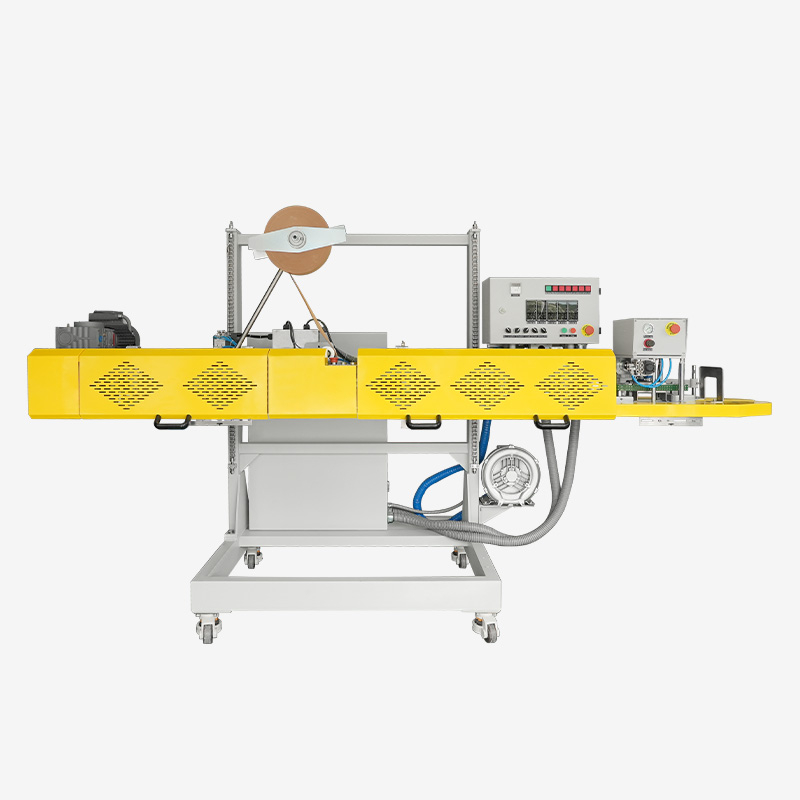

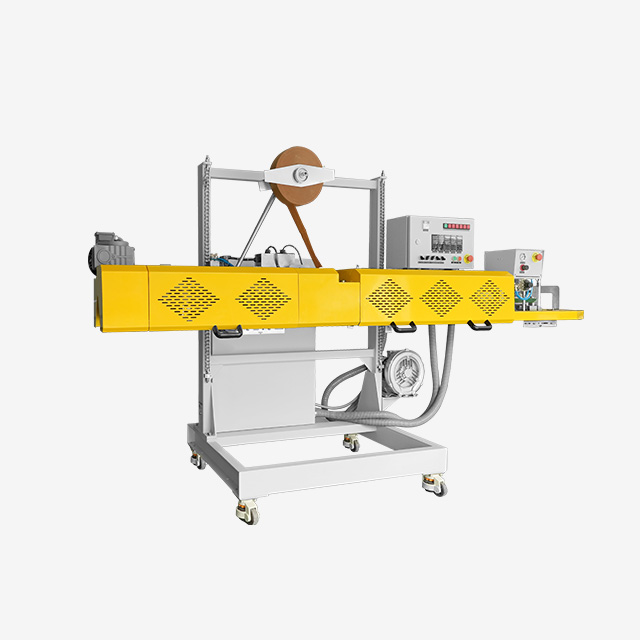

Automatic Big Bag Packaging Machine For Chemical Usage FBF-32A

Availability:
Quantity:
  • FBF-32A/FBF-32AD/FBF-32B/FBF-32BD

  • Hualian

  • Bags

  • Seal

Description


  • The machine is suitable for packing paper bag, multi-ply paper bag and inner plastic layers. According to the program, it can finish the processes of hot sealing inner plastic bags, pressing, trimming, side-line folding and impressing, bag top folding, packing thermosol paper tape, pressing paper and counting automatically, and deduster (optional).

  • Type B is applicable to open the bottom of the paper bag, and pick up the top of the bag, and then the inner bag will open automatically. This packing way is applicable to that the material of inner plastic bag and packing goods are the same. When need adding the materials, we just can put it into them together with the bags, so that it's very convenient for adding material and also is free of recycling these packing bags.


FBF-32A工序排列

Parameters



MODEL

FBF-32A

FBF-32AD

FBF-32B

FBF-32BD

Voltage (V/Hz)

AC 380/50

 Gross Power KW)

6

7.5

6

7.5

Transmission PowerKW)

0.75

Sealing Power  (KW)

0.5×10

Sealing Speed (m/min)

0-11

Temperature Range ()

0-400 adjustable

Deduster

×

×

Application

Three-layer paper bag ,PE   film inner liner sealing , one-folding and thermosal paper tape.

Specification of Hot Melt   Paper Tape (mm)

Width 75mm

External Dimension   (L×W×H)(mm)

3050×950×1800

Net Weight (kg)

320

350

320

350

Deduster PowerKW)

-

0.75

-

0.75


Dimension



FBF-32A 外形图 (Ver.A-01)

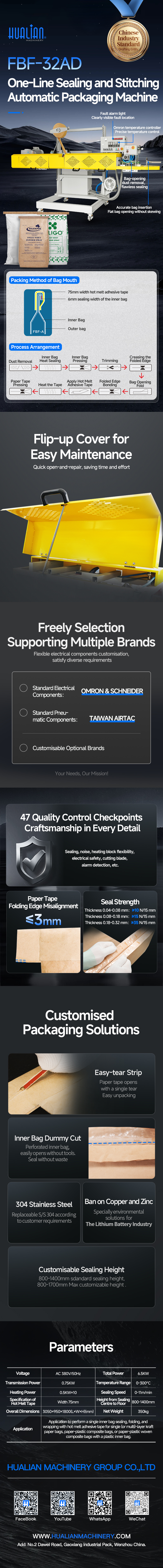

Product Detail


7智能化后道包装系统样品图48 产品包装
