Hualian Pinch Bag Sealer Series

Perfect For Heavy-Duty Single or Multi-wall

Paper Pinch Bags

Your Paper & Polywoven Bag Sealing Machine Manufacturer

Pinch bag sealer is used for sealing multi-wall paper and woven poly bags. It is widely used in food additives, seasonings, snack foods, engineering plastics, fine chemicals, feed, pet food, medical raw materials and other industries, and has high sealing requirements for heavy-duty (about 20-50KG) bag packaging.

Hualian pinch bag heat sealing machine series can be applied to different packaging needs, and can seal single (multi) layer kraft paper bags, paper-plastic composite bags or paper-plastic woven composite bags, woven bags, woven bags with PE plastic inner bags, PE or PP plastic bags, aluminum-plastic composite bags, single and multi-layer tongue-mouth paper bags, aluminum foil bags, etc.

Hualian bag closer machine adopts advanced technology integrating light, machine and electricity, and realizes full automation and high efficiency. It can seal thicker packages with high quality, high efficiency and continuous sealing. The sealing surface is smooth and beautiful, and the sealed packaging has excellent sealing performance, which can achieve dustproof, leakproof and pollution-proof effects.

If you need a heat sealing machine for your business, you can select from our wide range of products below or you can contact us！

Hot Pinch Bag Heat Sealing Machine

FBK-332C

ONE-LINE AUTO SEALING AND STITCHING PACKAGING MACHINE

Hualian FBK series sealing and sewing automatic packaging machines are suitable for heavy bags with a packaging weight of 25~50kg, suitable for the packaging of single (multi) layer kraft paper bags, paper-plastic (PE) composite bags or paper-plastic woven composite bags, etc. This series of machines can automatically complete a series of processes such as heat sealing of the liner bag PE film, sewing the bag mouth, wrapping the hot melt adhesive paper bag with heating and pressing, etc. according to the program.

FBH-S

IMPULSE HEAT SEALER FOR HEAVY-DUTY PLASTIC BAGS

Hualian FBH series Impulse heavy-duty bag heat sealing machine is suitable for thicker plastic bags of PE or PP with a single layer thickness of 0.12-0.32. It automatically completes the bag opening, heat sealing, counting and other processes according to the program. It uses pulse signals to control the temperature. The sealed bag has excellent sealing performance, which can prevent dust, moth and pollution, so that the packaged goods are properly protected.

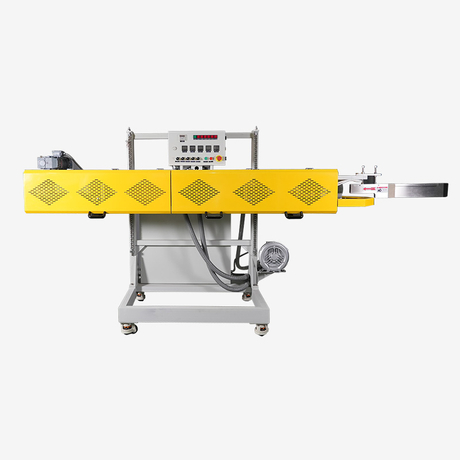

FBP-3W

SINGLE OR DOUBLE FOLD&PINCH SEALING

PACKAGING MACHINE

Hualian FBP fully automatic paper bag folding and hot pressing sealing machine is suitable for paper bag upper bag folding, heating, pressing and other packaging processes, or inner plastic preheating, heat sealing, outer bag folding, heating, pressing and other processes. This bag sealing machine adopts photoelectric combination technology. This machine can automatically complete all actions by program control. It has high efficiency and can well protect the materials in the packaging bag.

FBS-20C

AUTO EDGE-BINDING STITCHING PACKAGING MACHINE

Hualian FBS-20 automatic edge-folding stitching packaging machine is suitable for edge-folding and stitching of kraft paper bag or plastic woven bags, it has wide application in the fields of foodstuff, feed, chemical industry. This machine can equipped with a conveying machine or slipway. The start and stop the sartorious are controlled by the pedal switch, thread can be trimmed by manual. It could automatically and continuously finish all the processes of edge-folding, stitching, thread-snipping etc. of plastic woven bags.

Standard Specification

Model	FBK-332C	FBH-S	FBP-3W	FBS-20C
Voltage(V/Hz)	AC 380/50	AC 380/50	AC 380/50	AC 380/50
Gross Power（KW)	6.5	5	7.5	0.6
Transmission Power（KW)	0.75	-	0.75	-
Heating Power(KW)	0.5×10	-	6.45	-
Sewing machine drive power（KW)	0.37	-	-	0.55
Sealing Speed (m/min)	8.5	0-12	0-10	9 (Customize8-16)
Temperature range (℃)	0-300	0-300	-	-
Minimum height from material to bag mouth (mm)	180	180	-	200-250
Height From Sealing Center to the Floor(mm)	800-1400	800-1400	800-1400	800-1400
Bag material	Multi-layer paper bags, paper-plastic composite bags and two-in-one and three-in-one bags, lined with aluminum plastic or PE film bags, etc.	Polyethylene (PE), polypropylene (PP) film	Paper bag lined with PE or composite bag	-
External Dimension (L×W×H)(mm)	3030×950×1800	2172×1022×1800	3500×950×1800	838×1119×2750
Net Weight (kg)	600	-	350	150
Packing type	Sewing, wrapping hot-melt adhesive paper tape	Sealing	Tongue side folding and sealing	Sewing

Choose Packaging Type Of Pinch Bag Sealer

FBK-1(FBK-13DC)

Packaging Mode: First stitched, then add thermosal paper tape for heating closure.

FBK-2(FBK-24DC)

Packaging Mode: First seal inner PE film, then seal crepe paper tape for stitch.

FBK-3(FBK-332C)

Packaging Mode: First seal inner PE film, then stitch,and add thermosal paper tape for heating closure.

FBHK-2H

Packaging Mode: Intermittent sealing of the inner bag, stitching

FBH(FBH-S)

Packaging Mode：Heat seal bag

FBP-3W(FBP-3W)

Packaging Mode：Seals the inner plastic bag, and fold the bag opening to 90 degree and heats bag top thermosol with hot wind, then pinches and seals.

FBS-20(FBS-20)

Packaging Mode: Edge-folding and stitching for bags.

FBP-S(FBP-S)

Packaging Mode: Fold the bag opening to 90 degree, heat bag top thermosol with hot wind, and then fold to 180 degree to pinch and seal.

FBF-A(FBF-32A)

Packaging Mode: Seals the inner plastic bag and applies thermosol paper tape over the folded top of the bag, with inner bag sealing positions near the bag mouth (opening).

FBF-B

Packaging Mode: Seals the inner plastic bag and applies thermosol paper tape over the folded top of the bag, with inner bag sealing positions on both sides of the impressing line.

FBS-20C(FBS-20C)

Stitching packaging machine is suitable for stitching the paper or knitting bag.

FBS-10A/FBS-10B(FBS-10A)

Semi automatic enveloping & sewing sealer for heavy-duty bag is suitable for bag top binding and stitching of paper bags.

Feature Of Pinch Bag Sealer

Strong sealing performance

Hualian heavy-duty pinch bag sealer heats and seals the liner bag and hot-melt adhesive tape through a controllable constant temperature heating mechanism. The sealing effect is stable and tight. It is not easy to leak air or powder, so that your products are not affected by dust, moisture and environmental pollution, ensuring the quality and safety of your packaging.

High efficiency

Hualian heavy-duty pinch bag sealer can automatically complete a series of bag sealing operations such as trimming the bag mouth, inner bag heat sealing, inner bag pressing, sewing, wire braid cutting, paper tape wrapping, paper tape cutting, paper tape heat sealing, paper tape pressing and counting. No manual operation is required, which increases packaging speed and saves labor costs.

Wide applications

Using Hualian heavy-duty pinch bag sealer can easily meet your needs for different packaging materials. It can be used for packaging of single (multi-) layer kraft paper bags, paper-plastic (PE) composite bags or paper-plastic woven composite bags etc.

Environmental Protection

Hualian heavy-duty pinch bag sealer also has the function of bag mouth dust removal, which can be cleaned in time to keep the equipment clean. It can reduce energy consumption and scrap rate during the packaging process, reduce pollution to the environment, and meet the environmental protection requirements of modern society.

Successful Case

Application Of Hualian Bag Closer Machine In The Pet Food Industry

Hualian's Heavy-duty bag machines solve customers' needs for moisture-proof pet food, and increase the daily packaging of pet food from 400 to 1,500, which not only increases the speed but also reduces labor costs.

Application Of Hualian Heavy-duty Bag Sewing Machine In The Field Of Chemical Products

The chemical industry has put forward higher requirements for packaging equipment. According to customer requirements, we completed this big bag machine production line. The extremely high sealing performance prevents air and impurities from entering, maintains the purity and stability of chemicals, and is moisture-proof and leak-proof, realizing a 0-pollution, 0-leakage packaging and transportation system.

Application Of Hualian Floding And Pinch Sealing Machine In Engineering Plastics

From manual operation to fully automatic assembly line packaging, from the original multi-person operation process, processing 1-1.5 tons of materials a day, to unmanned operation, processing 10 tons of materials a day. Efficiency has been greatly improved, and labor costs have also been reduced.
