Full Automatic Food Vacuum Thermoforming Packaging Machine Manufacturers for Sale HVR-520A

Availability:
Quantity:
  • HVR-520A

  • Hualian

  • Bags

  • Vacuum

Description


  • HVR-A  Series Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.;  it will skin pack the product.

  • It is widely used to skin pack the products like kinds of snacks, meat, medical products, hardware, medical equipment, etc.

  • It adopts removable moulds which enable single machine to meet different sizes of moulds.

  • It equips with recycling device for waste film and ensure healthy environment.

  • It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.


Parameters

ModelHVR-520A
Voltage   (V/Hz)AC 380/50
Sealing Power (W)2000
Air   Source(Mpa)0.5-0.6
Chamber Dimension (L×W×H) (mm)500×(200-600)
Max.   stretch depth (mm)≤80
Vacuum Pump capacity (m3/h)100   or 160 or 200
Capacity(Times/min)4-6 times/min
Cooling Typewater-cooling
Upper   FILM Width(mm)492
Lower FILM Width (mm)522
External   Dimensions (L×W×H) (mm)

 without inkjet printer : 4820x1085x1885

 with inkjet printer : 5840x1085x1885

Net Weight (Kg)Approx.2000


Product Detail

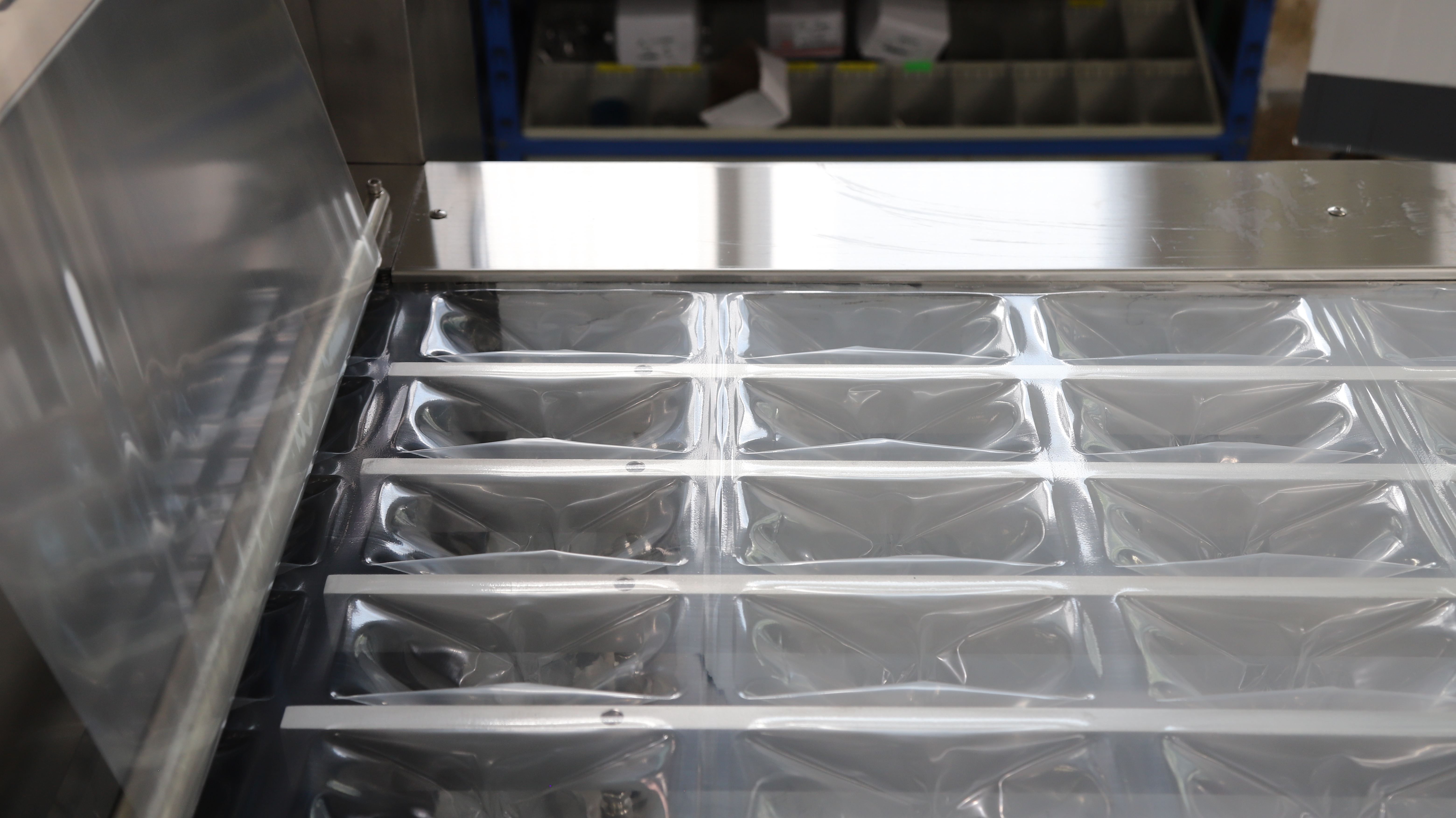

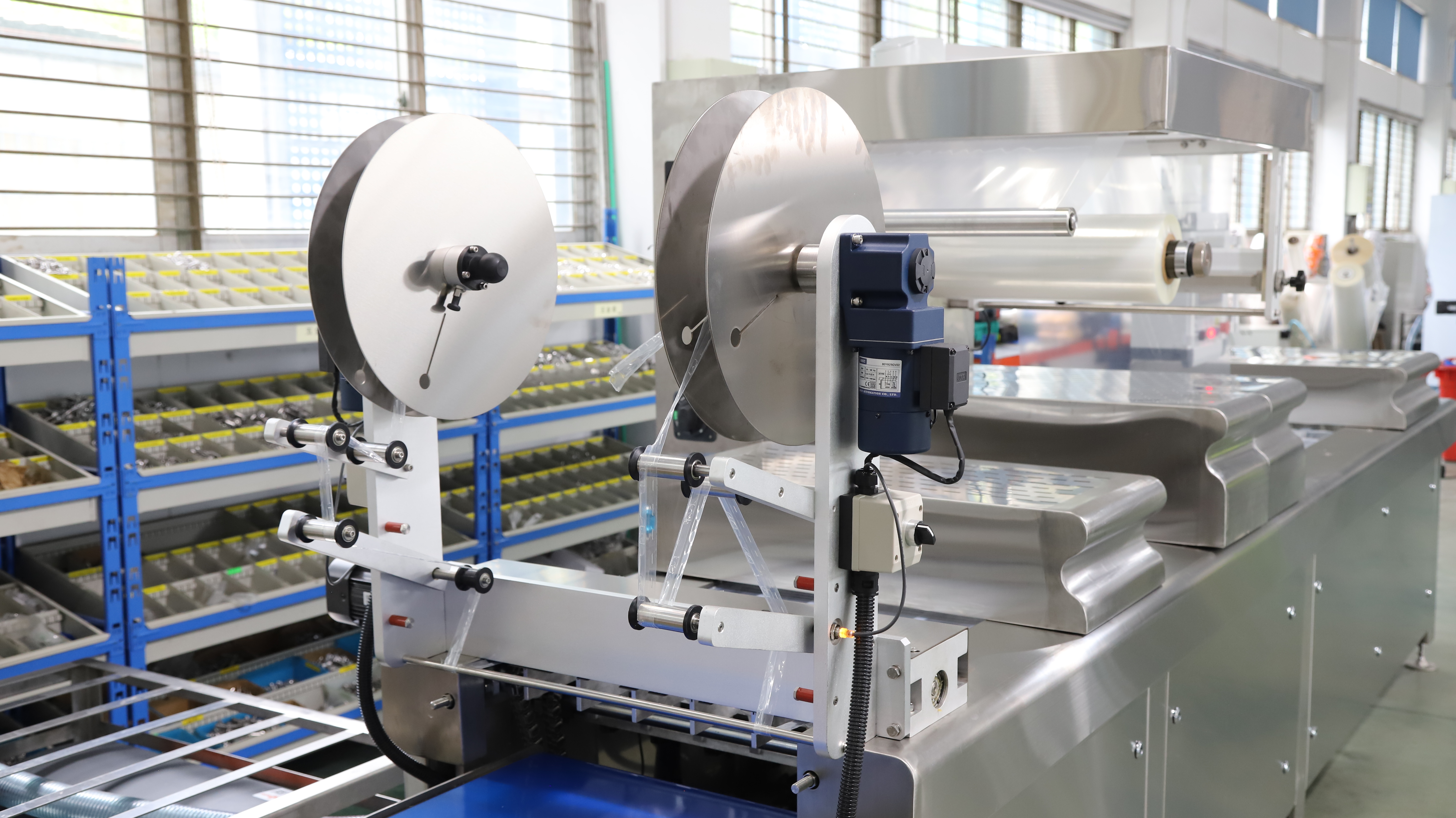

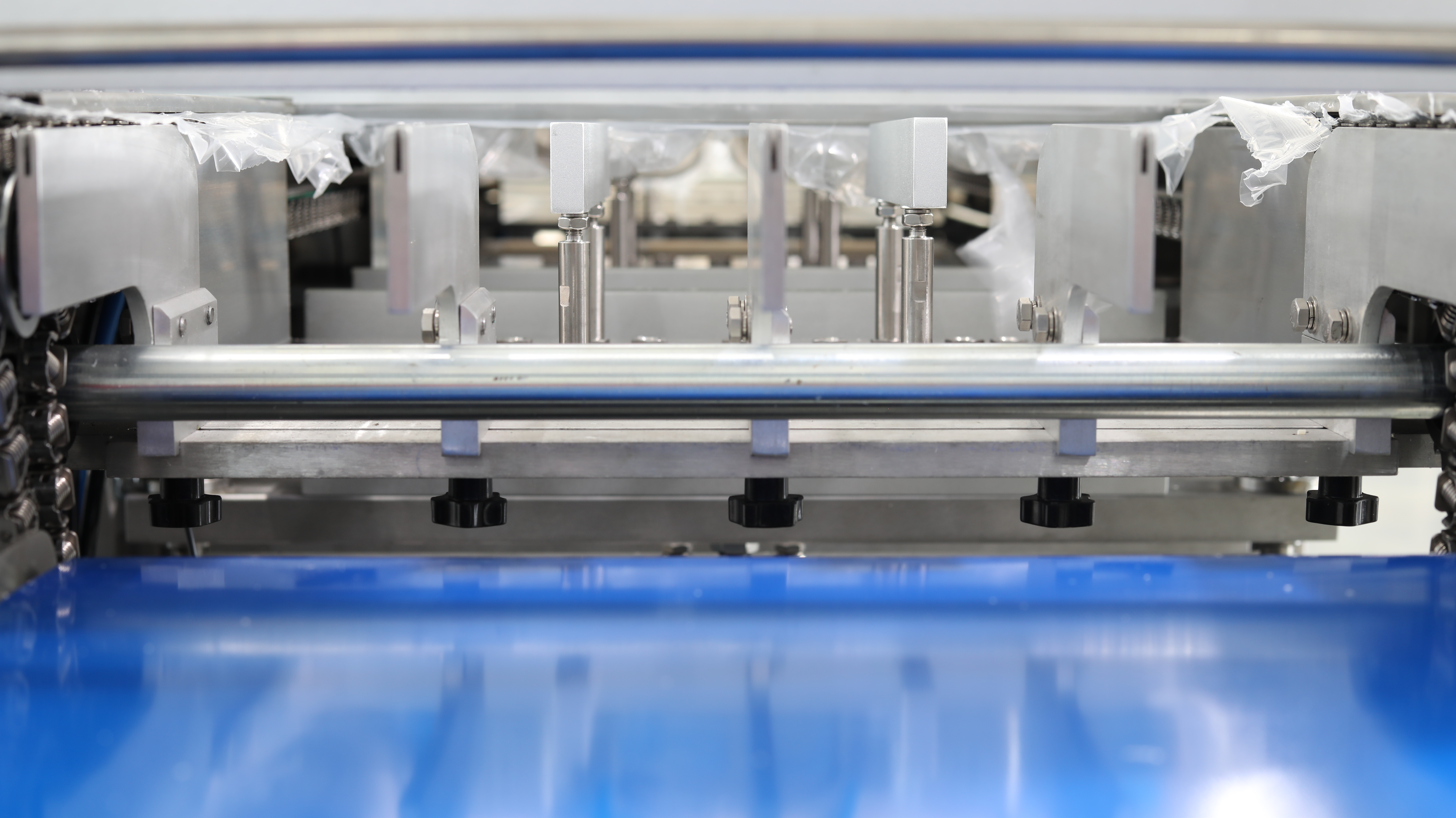

Continuous Vacuum Thermoforming packing machine

6HVRS-420A局部新

拉伸膜真空机样品图

9 产品包装
