Home / Products / Intelligent Packaging Equipment / Heavy Duty Plastic Bag Packaging Machine / Industrial Stitching Bag Packaging Machine For Paper FBK-13DC

Model:
FBK-13C/FBK-13DC/FBK-14C/FBK-14DC
Brand:
Hualian
Type:
Bags

Description

FBK series one-lined sealing and stitching automatic packaging machine, it could automatically finish the processes of dust-cleaning, trimming, stitching, binding the edge, cutting off, heat sealing, press closing and counting etc.This series machine adopts the advanced technology of light, electricity, and mechanism to guarantee its full automation and high performance. After sealing, stitching, binding edge and hot pressing, the sealing performance of bags is very excellent, which has the advantage of dust-proof, moth-eaten proof, pollution proof and could protect the package appropriately.

Features:

√9 standard models

√Equipping with any conveyor you want.

√Dust removal mechanism

√Fault self-diagnosis

Application:

1. FBK-13DC Automatic Sewing Bag Packaging Machine With Thread is applied to seal packing single layer Kraft paper, multi-layer Kraft paper, paper/plastic laminated bag, etc.

2. Typical products being packaged with these units are Construction Aggregates, Pet Food, Grains, Charcoal, Mulch, Smoking Chips, Rocks, Textiles, Fertilizers, Pellets, etc. Equipped with a sealing system capable of sealing the thickest bag materials.

3. To use in the place where there is enough space, such as factory and warehouse, etc.

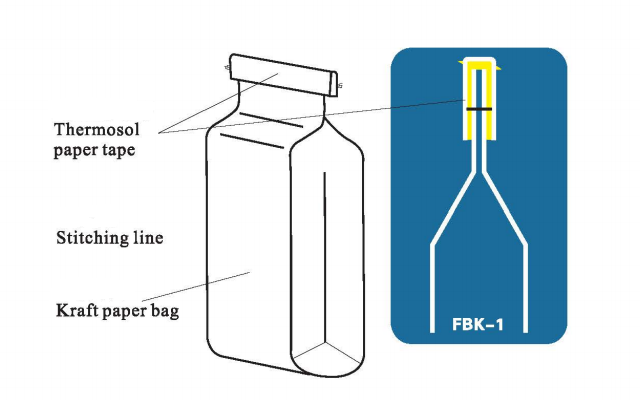

FBK-1袋口包装方式

FBK-1

FBK-1工序排列

Parameters

Model	FBK-13C	FBK-13DC	FBK-14C	FBK-14DC
Voltage(V/Hz)	AC 380/50
Gross Power（KW）	4.5	5	5.5	6
Transmission Power（KW)	0.75		0.75
Motor Power of Sewing Machine（KW)	0.37
Heating Power（KW)	0.5×6		0.5×8
Deduster Power（KW)	-	0.75	-	0.75
Sealing Speed(m/min)	8.5(Customized upper limit 11)
Height From Sealing Center to the Floor(mm)	750-1450
The minimum distance between the top of bag (mm)	180
Temperature Range(℃)	0-400
Air Source Pressure(Mpa)	0.6
Paper tape	o	o	o	o
Deduster	×	√	×	√
Application	Multi-layer paper bag、paper-PE compound bag and 2 in 1 or 3 in 1 bag etc.
External Dimension(L×W×H)(mm)	2600×950×1800		2800×950×1800
Net Weight (kg)	450	500		550
