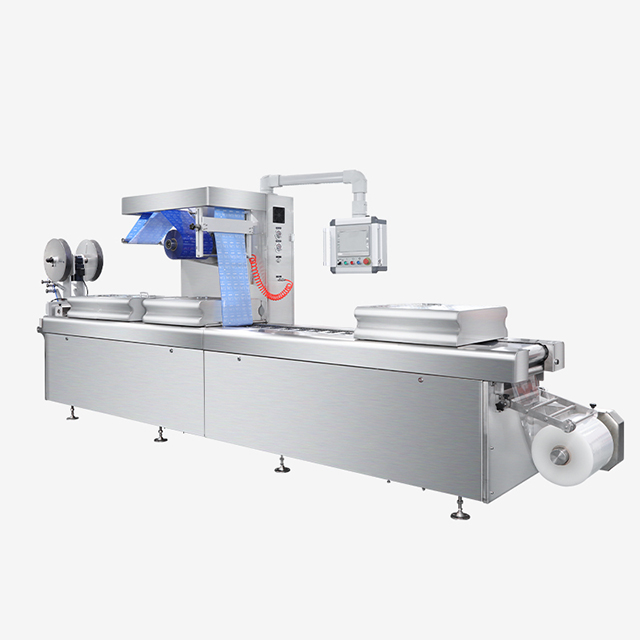

Automatic Thermoforming Rollstock Vacuum Packaging Machines HVR-320A

Benefit Of Hualian Vacuum Thermoforming Machine:

Full 304 Stainless steel

Customized Interchangeable Molds Designed For Flexible Flm

Equipped With Double Busch Vacuum Pump

Fast Operating Speed With Panasonic Servo Motor And Driver


Availability:
Quantity:
  • HVR-320A

  • Hualian

  • Bags

  • Vacuum

Description


HVR-A Series


  • HVR-A  Series Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.;  it will skin pack the product.

  • It is widely used to skin pack the products like kinds of cheese, snacks, sausage, meat, medical products, hardware, medical equipment, etc.

  • It adopts removable moulds which enable single machine to meet different sizes of moulds.

  • It equips with recycling device for waste film and ensure healthy environment.

  • It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.

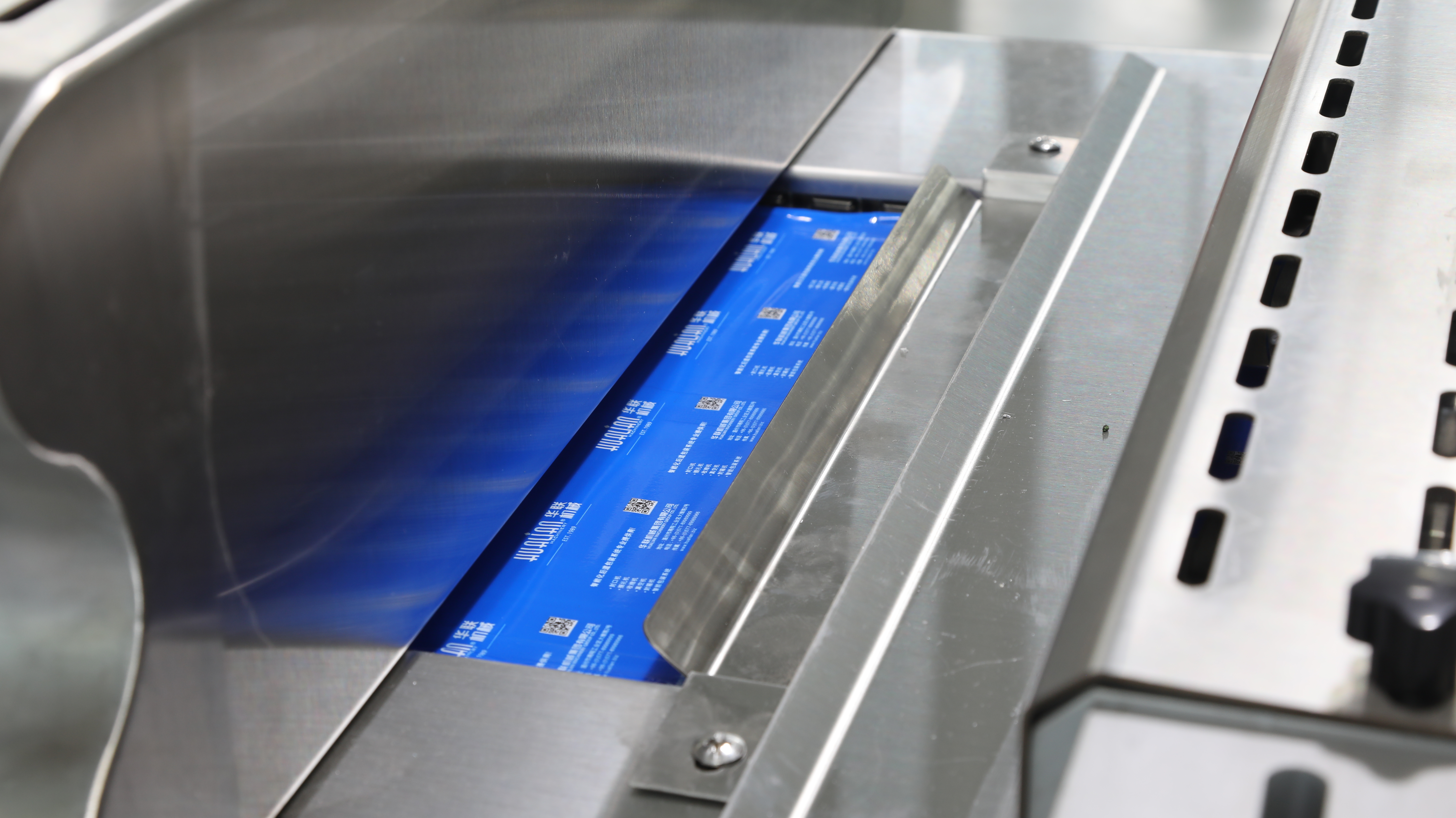

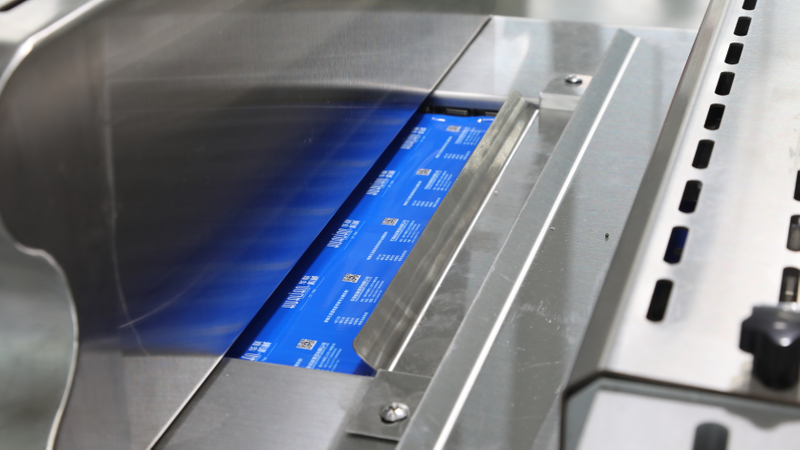

Partial view of Thermoforming packaging machine

BOTTOM FILM

Partial view of Thermoforming packaging machine

FILM DRAWING

Partial view of Thermoforming packaging machine

TOP FILM

Partial view of Thermoforming packaging machine

SCREEN

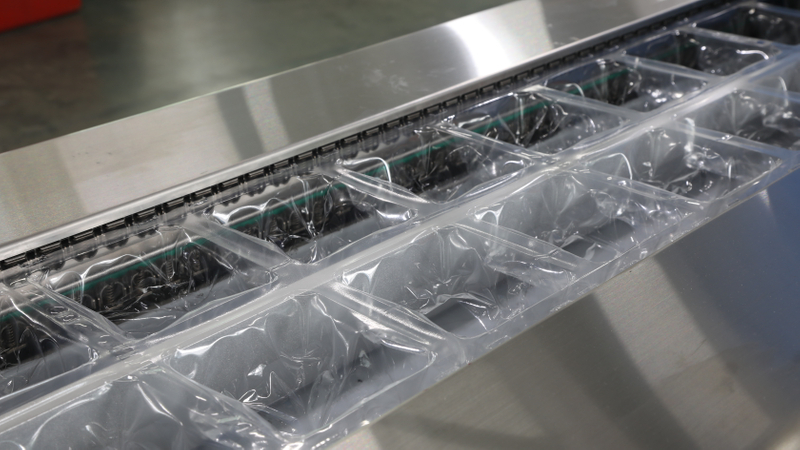

Partial view of Thermoforming packaging machine

FILM FORMING


Parameters


thermoforming packaging machine details

Model HVR-320A
Voltage   (V/Hz) AC 380/50
Sealing Power (W) 2000
Air  Source(MPa) 0.5-0.6
Chamber Dimension (L×W×H) (mm) 300×(200-400)
Max.   stretch depth (mm) ≤80
Vacuum Pump capacity (m3/h) 100   or 160 or 200
Capacity(Times/min) 4-6 times/min
Cooling Type water-cooling
Upper   FILM Width(mm) 292
Lower FILM Width (mm) 322
External   Dimensions (L×W×H) (mm)

without inkjet printer: 4820x885x1885

with inkjet printer: 5840x885x1885

Net Weight (Kg) Approx.1500



Product Detail

Thermoforming packaging machine samples


Keeping Freshness with Beautiful Packaging


Thermoforming packaging not only extends the shelf life of food, but also

maintains a beautiful appearance, increasing the appeal of food on the shelf

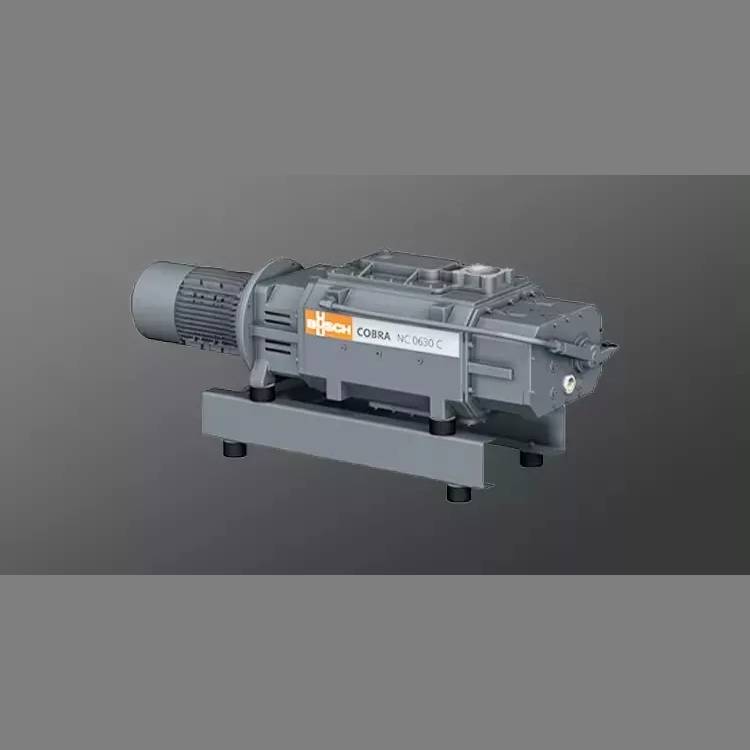

Higher fficiency


Equipped with Busch vacuum pump for higher fficiency and lower operating cost.

Packaging Capacity:4-6times/min

Double Busch



thermoforming packaging machine details

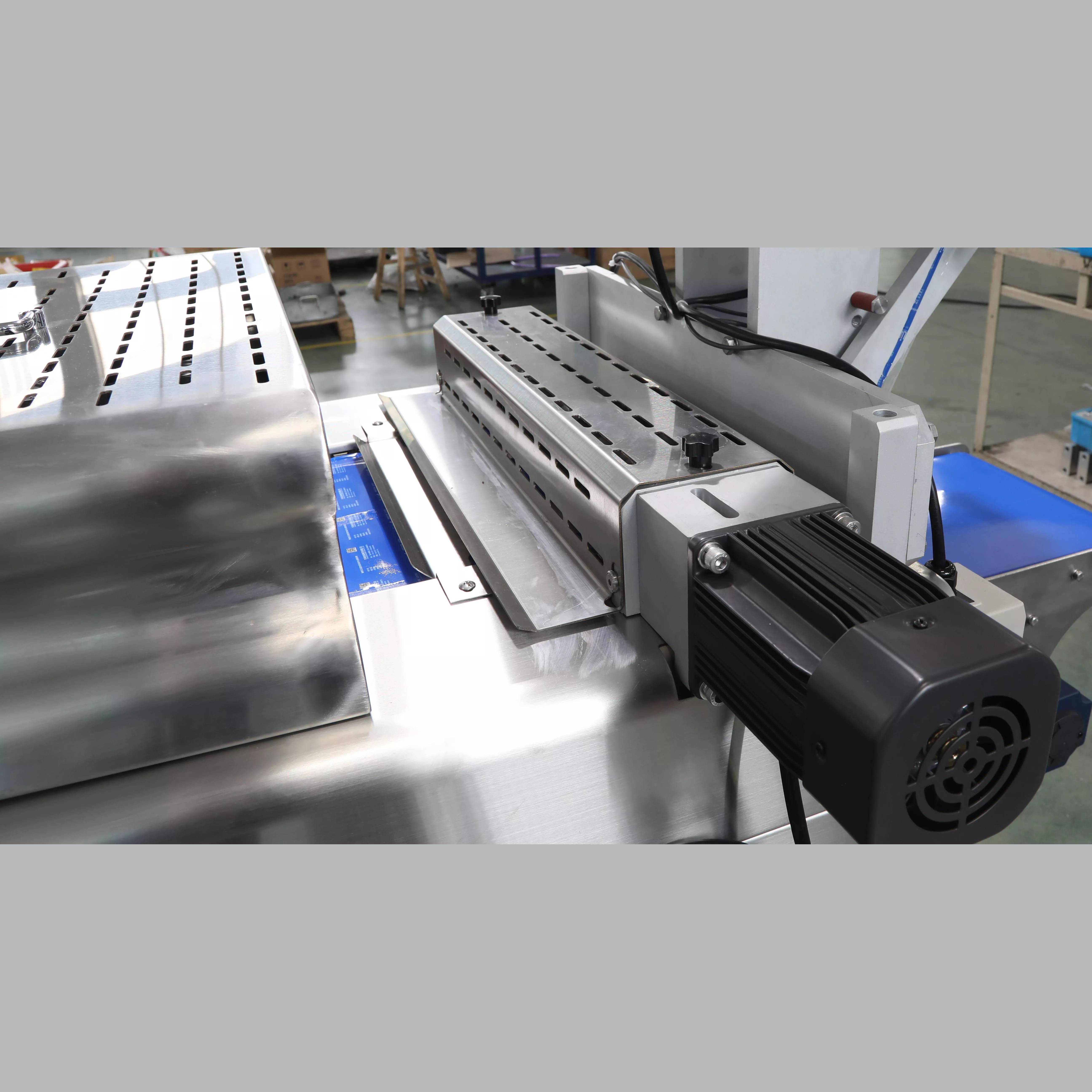

Safety Protection


All-round safety protection devices for heating, cutting and moving parts, avoid harm.

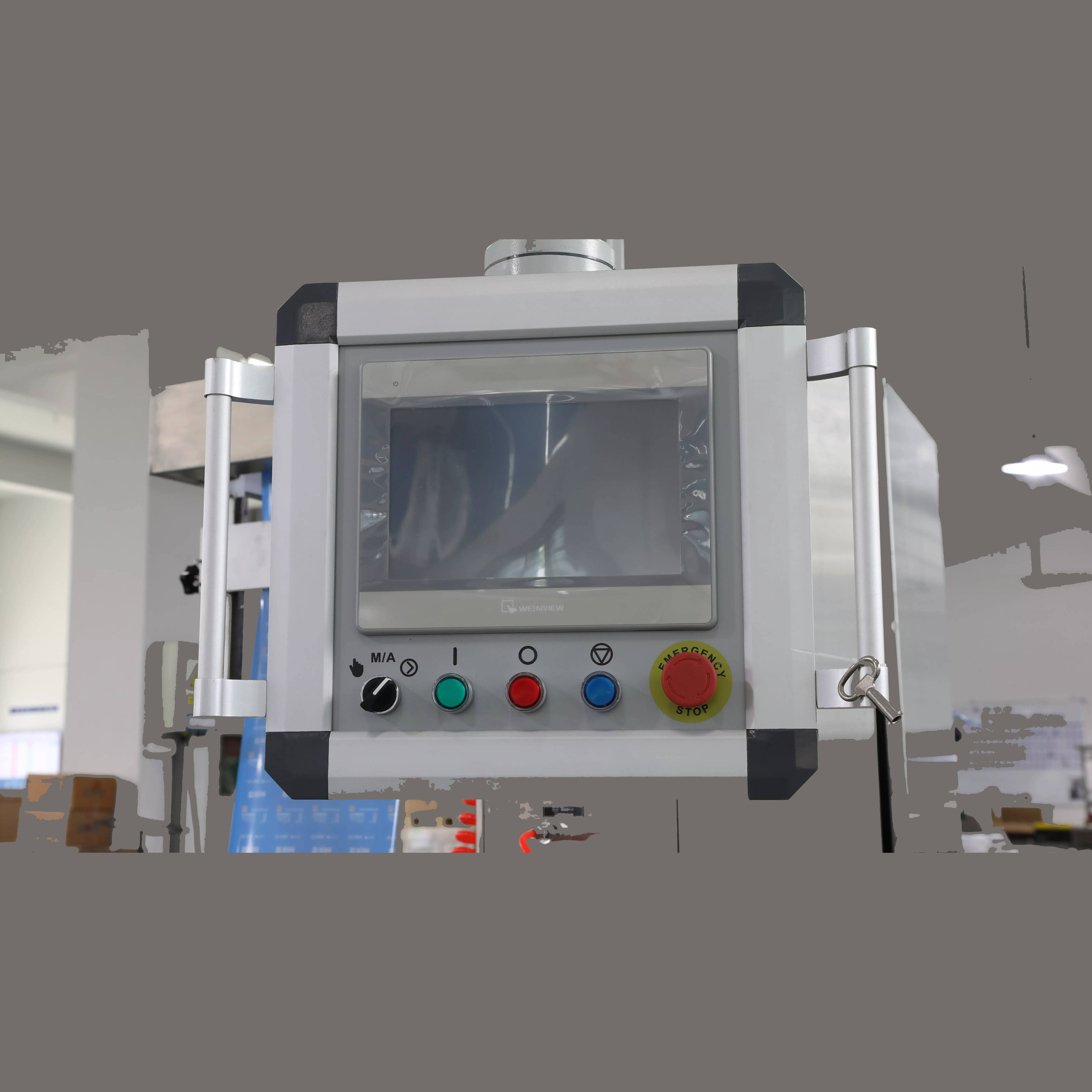

Easy Operation



Multiple languages operating system interface, with various functions bilt-in.


Thermoforming packaging machine control panel



thermoforming packaging machine mold depth

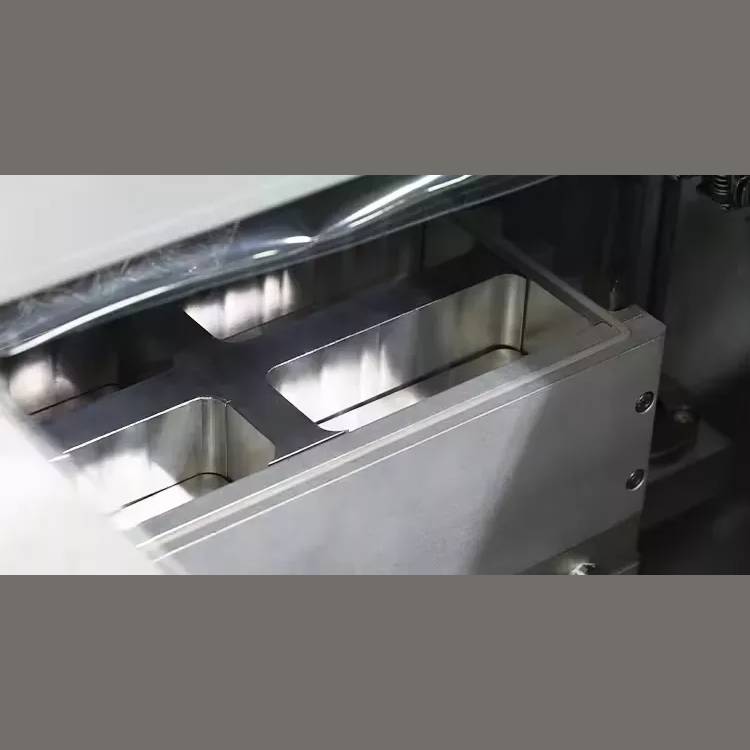

Interchangeable Molds And Deep Depth



304 S/S casing. and high-strength aluminum alloy for molds.  Customized interchangeable molds designed for flexible flm.




1.拉伸膜真空包装机简介_01(6)

One Tray Out

1.拉伸膜真空包装机简介_01(7)

Two Tray Out

1.拉伸膜真空包装机简介_01(4)

Four Tray Out

1.拉伸膜真空包装机简介_01(5)

Six Tray Out
