Fold Pinch Bag Sealer Packaging Machine For 25kg Powder Or Granule Packaging FBP-3W

Availability:
Quantity:
  • FBP-3W

  • Hualian

  • Bags

  • Seal

Description


  • FBP series single or double fold Q pinch-sealing packaging machine for paper sack is suitable for  packaging  processes  of  top  edge-folding, heating, pinching, or processes of preheating of inner plastic layer , heat-sealing, out  bag  top folding , heating, pinching.

  • This series machines adopt photoelectric combined technology. They are programmable to auto finish bag top opening ,hot wind preheating ,heat-sealing inner plastic , embossing folded line ,edge folding ,hot wind heating and sack top pinching.

  • This machine is efficient ,and this sealing type has the highlights of sift-proof, strong closure, dust-proof, moist-proof, mold free ,no contamination, which makes the materials in sacks  well protected.

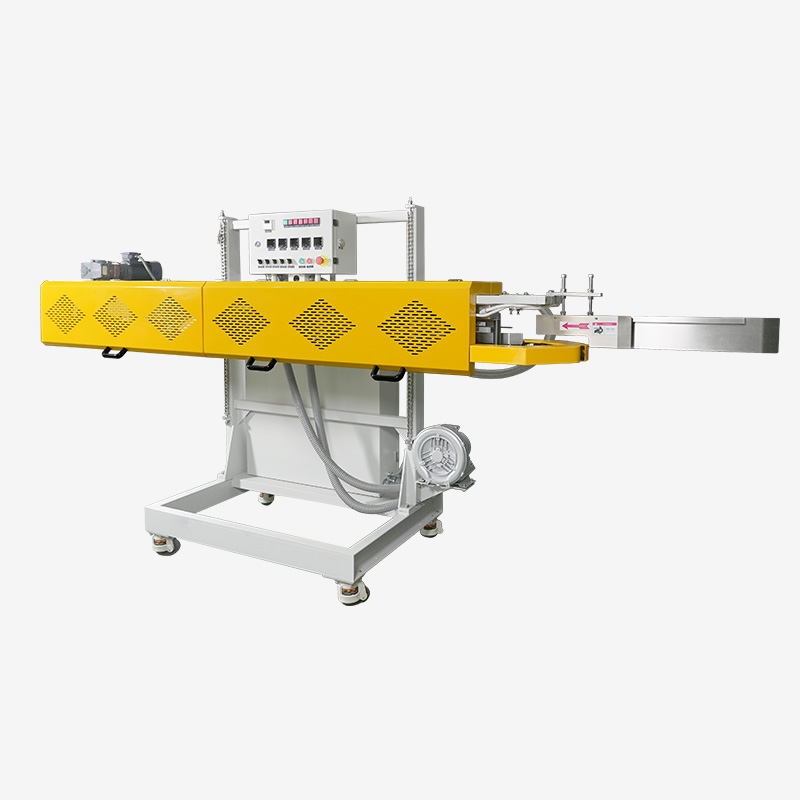

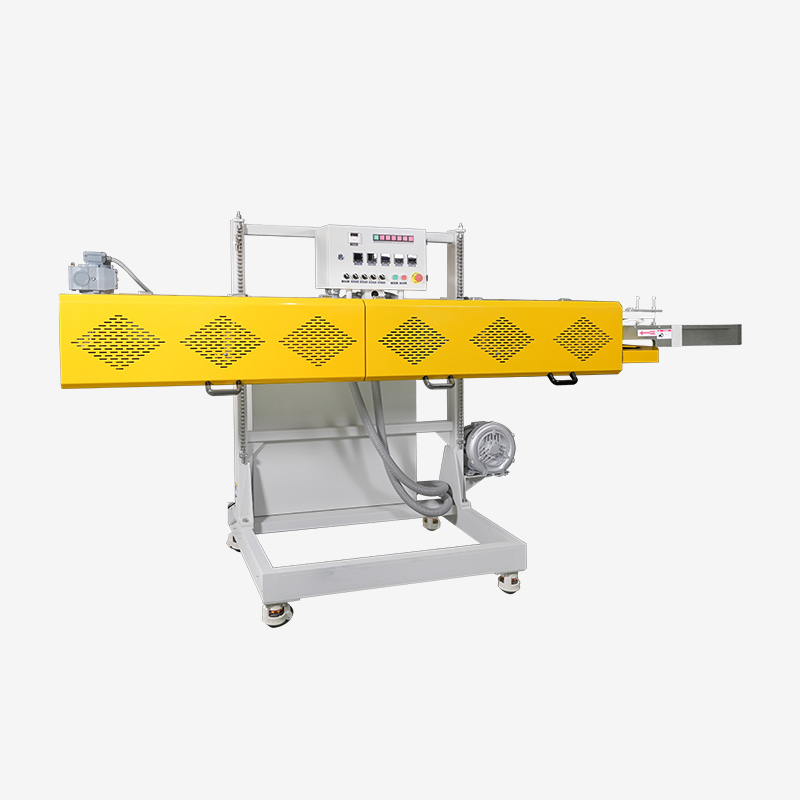

Hualian pinch bag sealer






The machine is suitable for the automatic packaging of flanging kraft paper bag or multi-ply kraft paper bag and the plastic bag with inner PE film.At first,it seals the inner plastic bag,and fold the bag opening to 90 degree and heats bag top thermosol with hot wind,then pinches and seals.




003

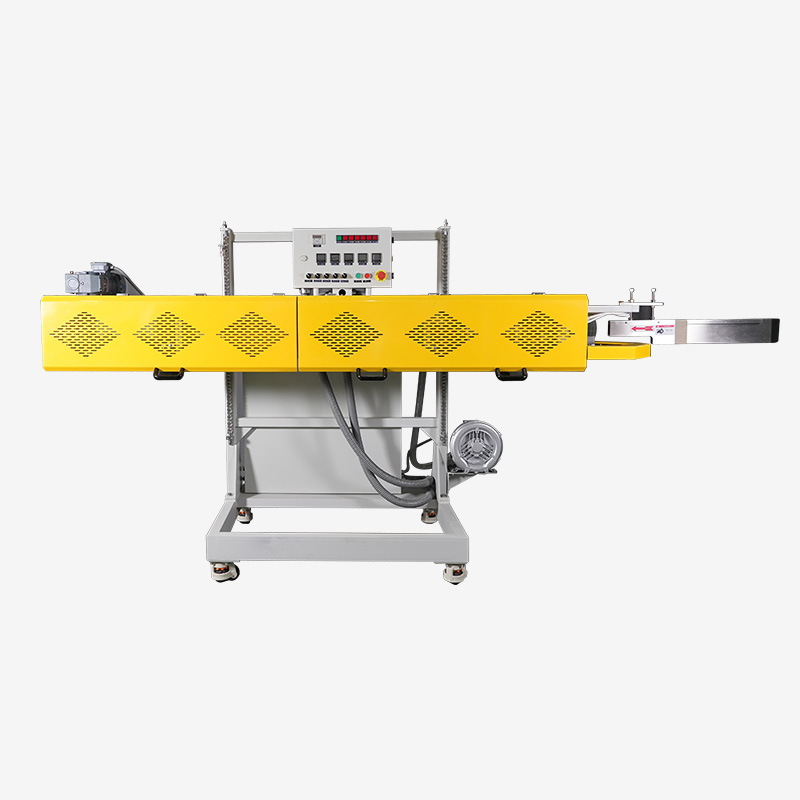

Hualian Pinch Bag Sealer

Parameters



MODEL

FBP-3W

Voltage(V/Hz)

AC 380/50

Gross PowerKW)

7.5

Transmission PowerKW)

0.75

Heating Power(KW)

6.45

Sealing Speed (m/min)

0-10

Folding Width(mm)

50

Bag Type

Paper bag Plastic bag with   Inner PE film

Height From Sealing Center to the Floor(mm)

750-1450

Air Source Pressure(Mpa)

0.6

External Dimension (L×W×H)(mm)

3500×950×1800

Net Weight (kg)

350



Dimension


FBP-3W 外形图 (Ver.A-01)

Product Detail

Hualian pinch bag sealer parts5 局部图上框

Hualian pinch bag sealer parts


Hualian pinch bag sealer parts


7智能化后道包装系统样品图48 产品包装
