FRB-770I
Hualian
Bags
Seal
Description
FRB-770 series is available in three models: horizontal model (FRB-770I), vertical model (FRB-770II), and floor-standing model (FRB-770III). The machine is ideal for sealing small packages, which adopts a constant temperature control system and step-less speed regulation mechanism.
Features:
√Reliable performance
√Simple operation
√Convenient maintenance
√Wide range of application
√Constant temperature control system
√Stepless speed regulation
√Embossing wheel and counting device are optional
Application:
1. FRB-770 series plastic film bag continuous sealing machine is suitable for sealing all kinds of heat-sealed packages continuously. Such as PE bag, accordion bag, aluminum foil bag, kraft paper bag, electrostatic bag, Yin-Yang bag.
2. It widely use in the food, pharmaceutical industry, chemical industry, agriculture, lubricating oil, and other industries.
3. To use in the place where there is a restriction on space, such as small factory, monopolization shop, and workshop, etc.

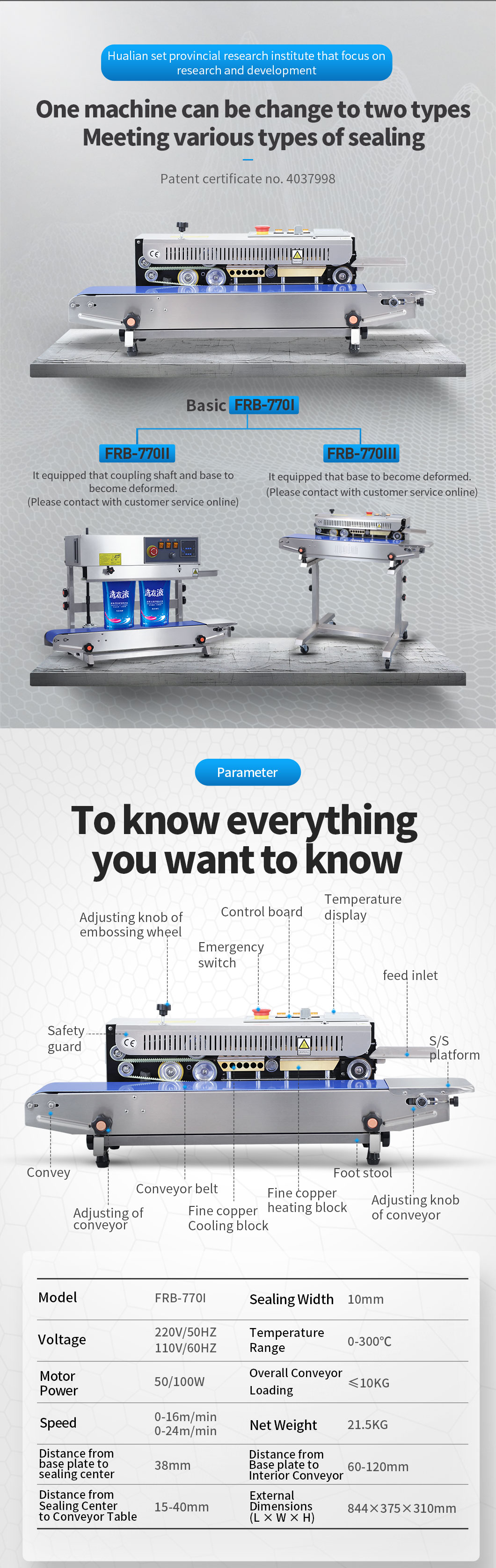

Parameter
Model | FRB-770I | FRB-770II | FRB-770III |
Voltage (V/Hz) | AC 220/50 | ||
Motor Power (W) | 50/100 | ||
Sealing Power (W) | 300*2 | ||
Speed (m/min) | 0-16(0-24) | ||
Seal Width(mm) | 10 | ||
Distance from Sealing Center to Conveyor(mm) | 15-40 | 150-270 | 15-40 |
Distance from Base Plate to interior Conveyor(mm) | 60-120 | - | 60-120 |
Max.Distance from Sealing Center to Bag Opening(mm) | 21 | ||
Temperature Range | 0-300 | ||
Printing Type | Steel embossing wheel for printing(optional) | ||
Conveyor Size(L*W)(mm) | 844*153 | ||
Overall Conveyor Load(kg) | ≤10 | ≤10 | ≤10 |
External Dimensions(L*W*H)(mm) | 844*375*310 | 844*390*450 | 844*555*800 |
Net Weight (Kg) | 21.5 | 24.5 | 29 |
