Hualian Environmental Friendly Water Activated Kraft Paper Tape Carton Packing Machine

Product Center

To create a world-renowned leading enterprise in the international

packaging machinery field.

Home / Products / Carton Sealer / Semi automatic Carton Sealer / Hualian Environmental Friendly Water Activated Kraft Paper Tape Carton Case sealer packing machine FXW-6050

Model:
FXW-6050
Brand:
Hualian
Type:
Cartons

Product Description

Description

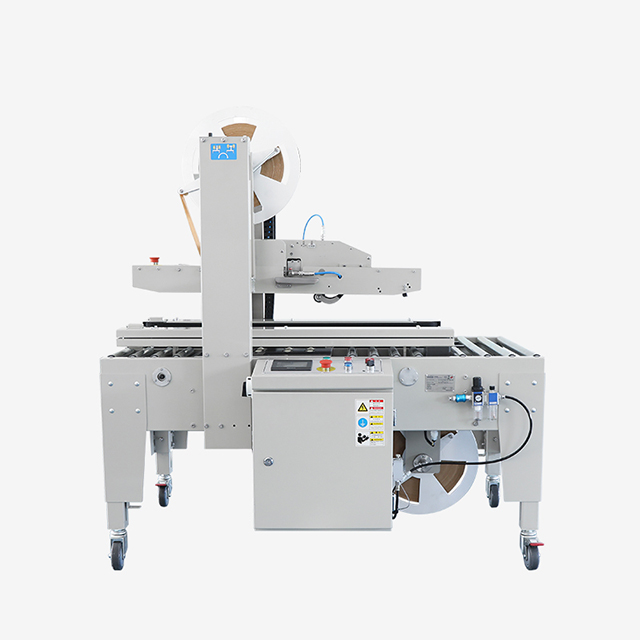

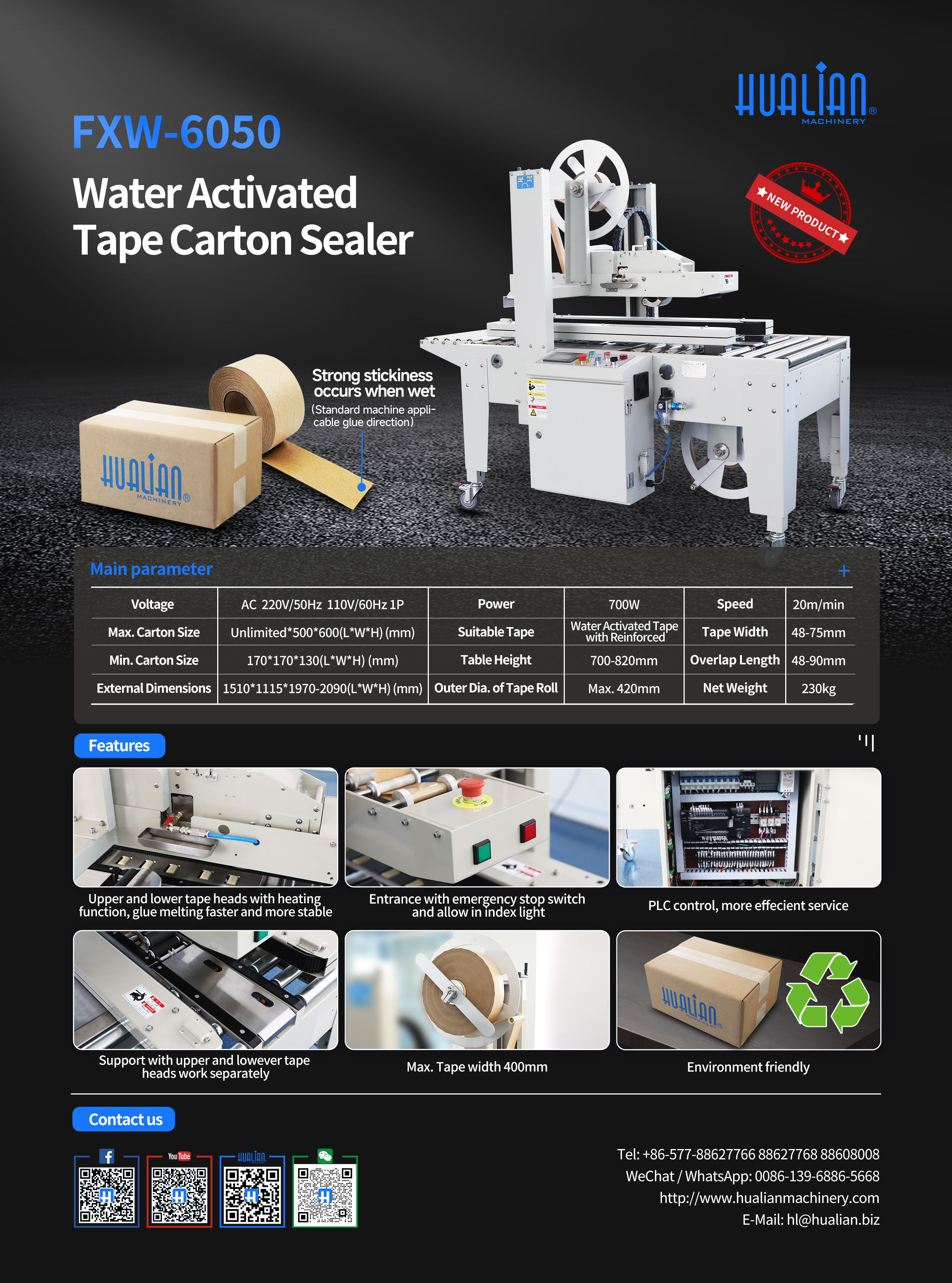

FXW-6050 Wet Adhesive Paper Carton Sealer uses water active tape to seal the box, green, economic, fast, easy to adjust. Mainly suitable for carton sealing packaging, can not only single operation, also can be used with the assembly line. The tension of the conveyor belt sealing tape is adjustable, suitable for soft and hard cartons. The front cover, side cover and back cover of the carton fold in automatically, quickly and smoothly. Driven by two sides of the belt, the upper and lower sealing heads are sealed at the same time or the upper sealing heads are sealed at the same time, suitable for continuous sealing of cartons with the same specifications.

Application

●Applicable Industries: Garment shops, building material shops, manufacturing.

●Application: Food, beverage, commodity, medical products, chemical products, etc.

●Packaging material: Kraft paper with reinforced.

What are the advantages that FXW-6050 could bring to the users?

1.Water-activated tape carton sealer seals cartons using kraft paper tape, it is more environmentally friendly. Comparing to manual or small water-activated kraft paper dispenser, FXW-6050 could be adopted in the packing line with higher production

3.Sealing cartons with water-activated kraft paper with reinforced could be more solid in sealing realization than BOPP tape.
4.FXW-6050 keeps a speed of 20m/min which is two times faster than other water-activated tape carton sealers in the market.
5.FXW-6050 adopts PLC from Omron and touch-screen from WEINVIEW, well-known international brands meanwhile the machine keeps a competitive price in the market.

Parameters

Model	FXW-6050
Voltage (V/Hz)	AC 220/50 110/60 1P
Power (W)	700
Max. Carton Size ( LxWxH)(mm)	Unlimitedx500x600
Min. Carton Size ( LxWxH)(mm)	170x170x130
Speed (m/min)	20
Suitable Tape	Water activity kraft paper
Tape Width (mm)	48-75
Length of the Overlap on Sides (mm)	48-90
Max. Diameter of the Tape (mm)	420
Table Height (mm)	700-820
External Dimensions ( LxWxH)(mm)	1510x1115x(1970-2090)
Net Weight (kg)	230
