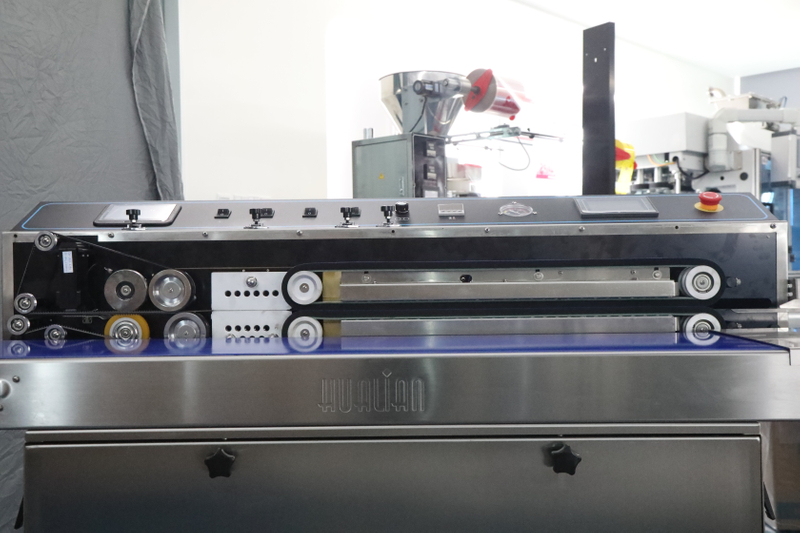

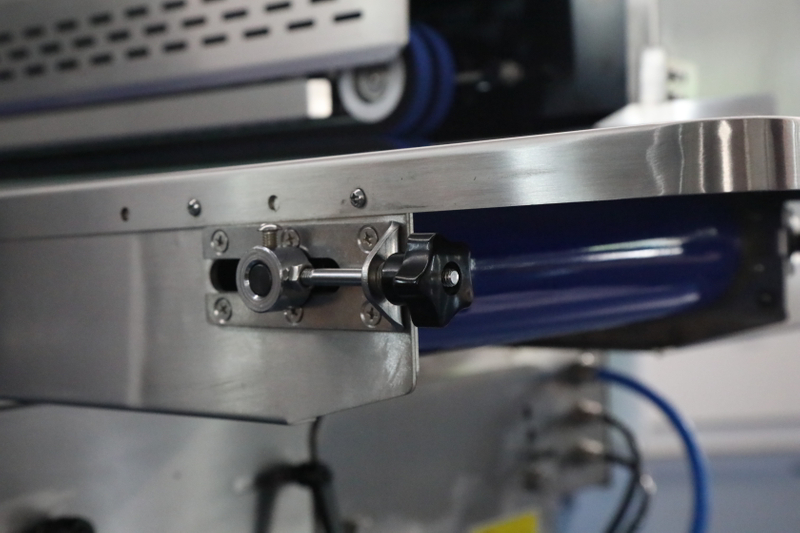

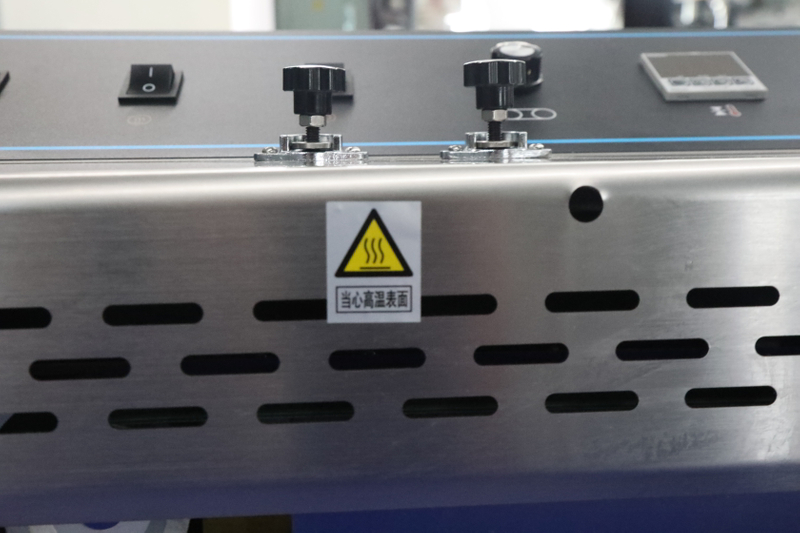

Ink-jet Coding Air Sucking Band Sealer FRP-1120WH

Benefit of  Continuous Band Sealer:

Integrated air suction, flushing, sealing and ink-jet coding

Ink-jet coding for multiple lines and pictures

Touch screen

Horizontal moving air nozzle

Speed: 0-24m/min

Vacuum generator

Max.bag weight can be 15kg


Availability:
Quantity:
  • FRP-1120WH

  • Hualian

  • Bags

Product Description

Application:

FRP-1120WH is suitable for sealing medium and large bags that require air sucking or flushing. It integrates air sucking, flushing, sealing, and ink-jet coding. It adopts touch screen for the simple operation, multiple functions, and perfect sealing effect.


Adopt Horizontal Movable Sucking Air Nozzle:

√Compared to other types of air suction band sealer or those use swinging air nozzles, it has higher vacuum degree.

√Compared to traditional vacuum machines, it has higher work efficiency.


Parameters

Model

FRP-1120WH

Voltage(V/Hz)

AC 220/50 110/60

Air Compressor(V/Hz)

0.5(Equipped by user)

Motor power(W)

180

Sealing power(W)

400x2

Speed(m/min)

0-24

Sealing width(mm)

10

Temperature range(℃)

0-300(Stepless adjustable)

Printing Type

Ink-jet coding

Distance from sealing center to conveyor(mm)

0-40

Distance from base plate to interior conveyor(mm)

100-142

Max distance from sealing center to bag mouth(mm)

35

Min distance from sealing center to material(mm)

55

Conveyor Size(LxW) (mm)

1730x300

Overall conveyor load (Kg)

15

Bag width range(mm)

80-400

Diameter of Air Supply Pipe(mm)

12

Diameter of Charging Air Source Connecting Pipe(mm)

8

External dimensions(LxWxH)(mm)

1730x660x1030

Net weight(Kg)

152

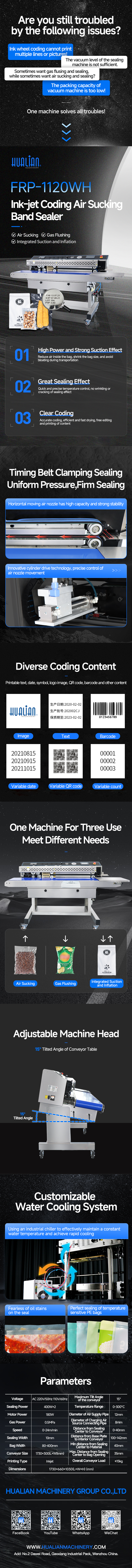

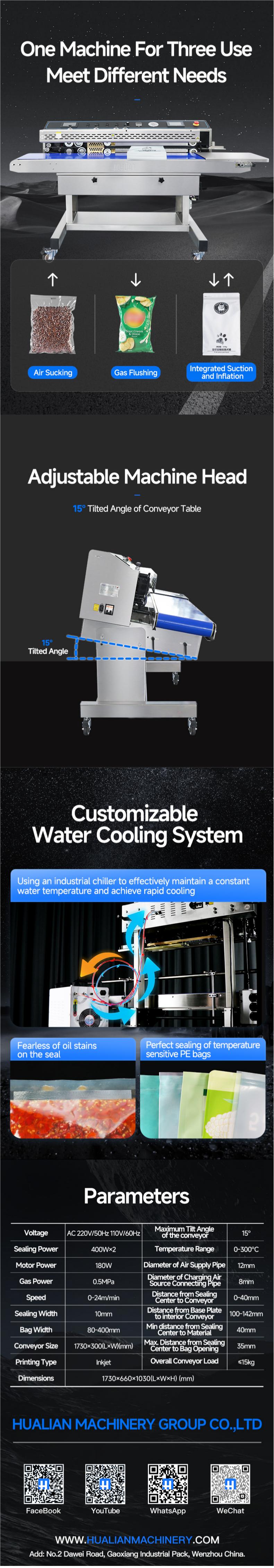

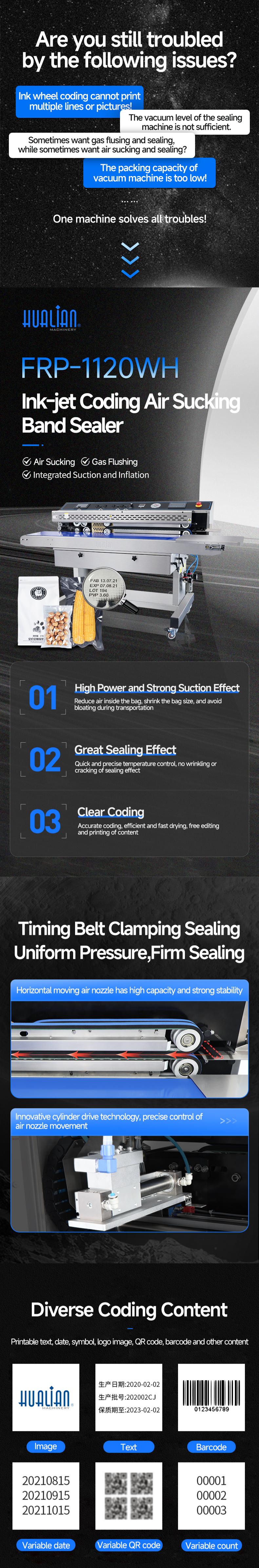

Product Detail

FRP-1120WH英文-20230508_01FRP-1120WH英文-20230508_02

FRP-1120WH英文-20230508_03FRP-1120WH英文-20230508_04

Hualian Band sealer parameter
