| Quantity: | |
|---|---|
FR-1370AL/L
Hualian
Bags
Seal
Description

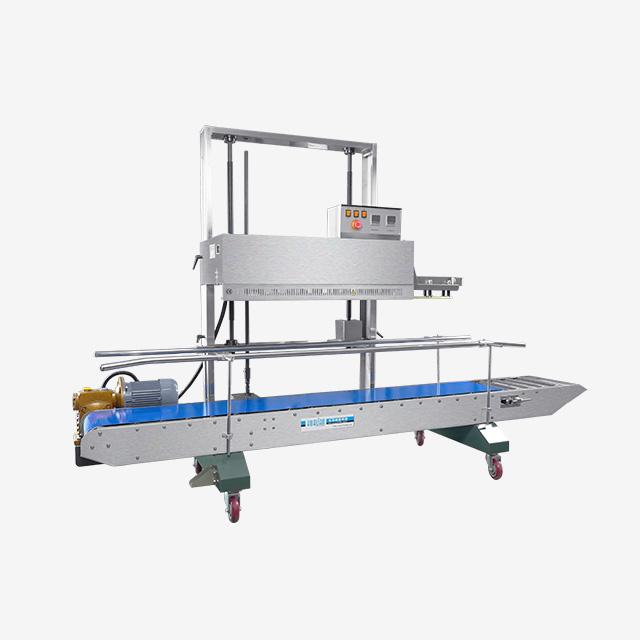

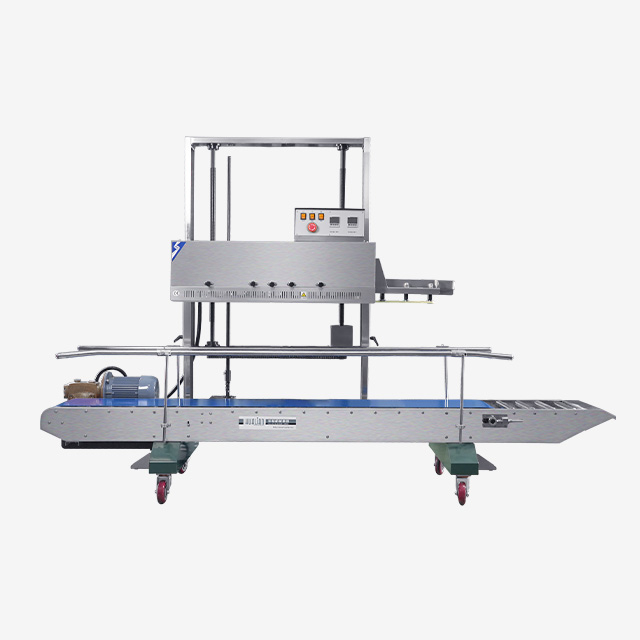

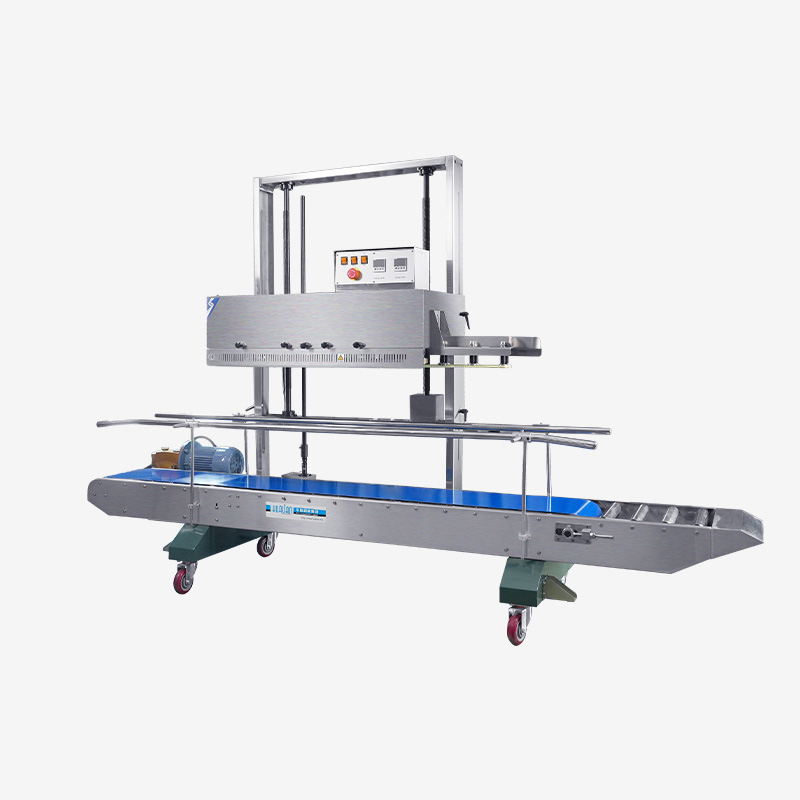

The machines of FR-1370 series are two sets of heating blocks for heat-sealing of thick film packing, used to seal the package weighing under 5kgs, 10kgs and 20kgs respectively.
Parameters
MODEL | FR-1370AL/L |
Voltage (V/Hz) | AC 220/50 110/60 |
Motor Power (W) | 550 |
Sealing Power (W) | 400×4 |
Speed(m/min) (m/min) | 8 |
Seal Width (mm) | 10 |
Temperature Range (℃) | 0-300 |
Distance from Sealing Center to Conveyor (mm) | 300-960 |
Max.Distance from Sealing Center to Bag Conveyor (mm) | 109 |
Conveyor Size (L×W )(mm) | 2400×350 |
Net Weight (kg) | 250 |
Overall Conveyor Load (kg) | ≤60 |
External Dimensions (L×W×H) (mm) | 2565×720×1670 |
